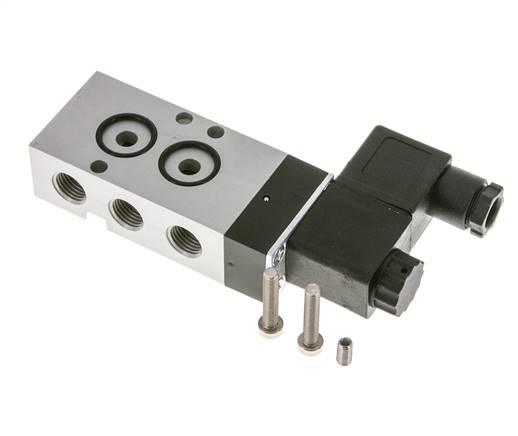

Namur Direct Acting Solenoid Valve 1/4 High Speed in Pakistan

Namur Direct Acting Solenoid Valve 1/4 High Speed in Pakistan

Principle of direct-acting solenoid valve: When energized, the solenoid coil generates electromagnetic force to lift the closing member from the valve seat, and the valve opens; when the plate is powered off, the electric power magnetic force disappears, and the spring presses the closing member on the valve seat to close the valve. Features: It can work normally under vacuum, negative pressure and zero pressure, but the diameter generally does not exceed 25mm.

Principle of the pilot solenoid valve: When power is applied, the electromagnetic force opens the pilot hole, the pressure in the upper chamber drops rapidly, and a high pressure difference is formed around the closing part. The fluid pressure pushes the closing part upward and the valve opens; when the power is off, The spring force closes the pilot hole, and the inlet pressure quickly passes through the bypass hole to form a low and high pressure difference around the valve closing member. The fluid pressure pushes the closing member to move downward to close the valve.

Direct-acting solenoid valves are relatively fast, and the action time is short. When the frequency is high, the direct-acting type is generally used; the pilot-operated solenoid valve uses a small valve to open the large valve, with a large flow rate and a large diameter.

Principle of direct-acting solenoid valve: When energized, the solenoid generates electromagnetic force to lift the closing member from the valve seat, and the valve opens; when the power is turned off, the electromagnetic force disappears, and the spring presses the closing member on the valve seat and the valve closes . Features: It can work normally under vacuum, negative pressure and zero pressure, but the diameter generally does not exceed 25mm.

At www.pakistanpowertool.com keeping the pace of industry developments, we have an extensive range of Solenoid Valve. Here you have Solenoid Valve at a reasonable price in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan, and all over Pakistan.
