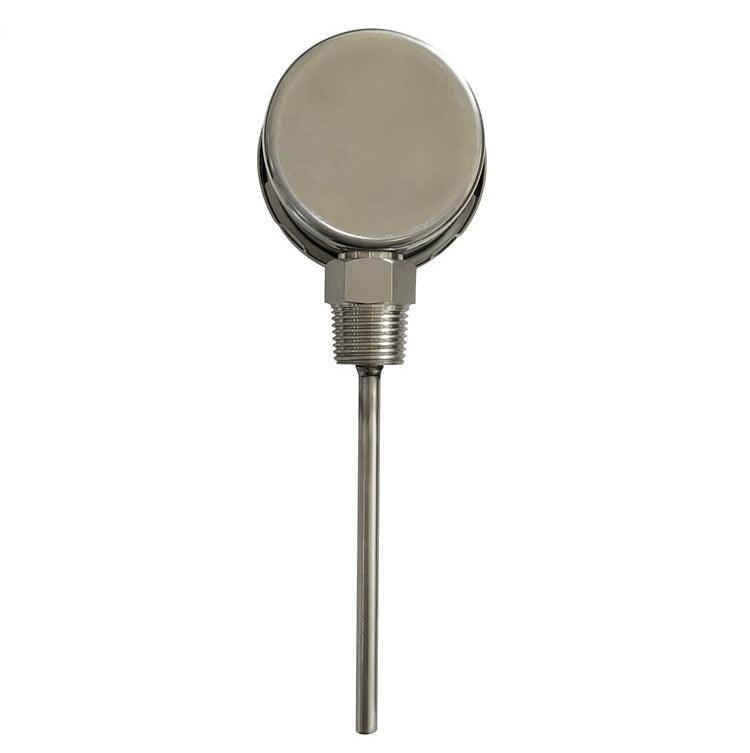

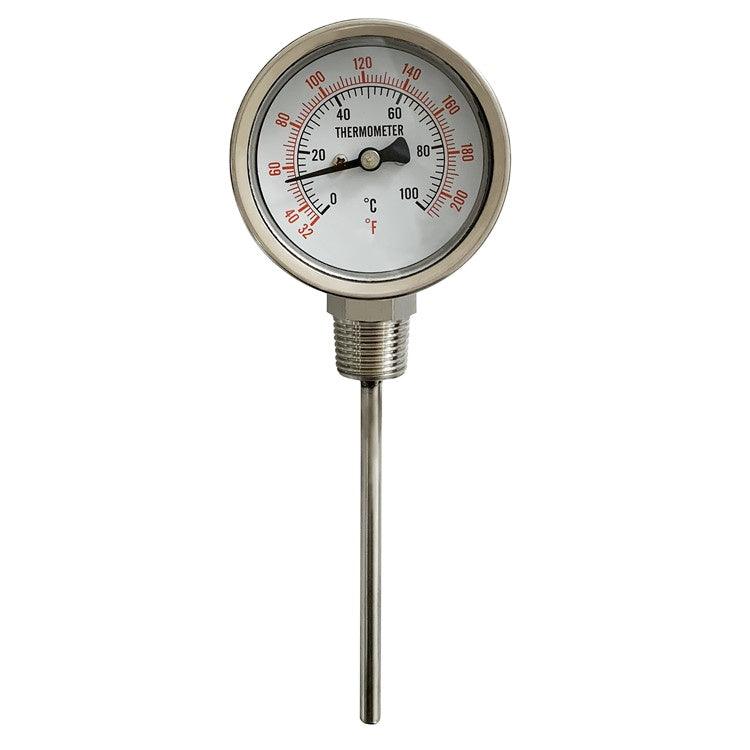

Bi Metal Thermometer 200 Celsius SS Body Bottom Connection in Pakistan

Bi Metal Thermometer 200 Celsius SS Body Bottom Connection in Pakistan

Bi Metal Thermometer is a kind of suitable for measuring the temperature field testing instrument, can bimetallic thermometer used to directly measure the liquefaction, the temperature of the gas. Compared with glass mercury thermometer has no pump, reading clear, durable and other advantages.

Description

Size : 4 Inch Dial x 6 Inch Stem
Scale : celsius/farenheit
Connection : Bottom / 1/2" Inch
Body: SS Body

The temperature measurement of the bimetal thermometer is realized through the temperature sensing of the helical spring bimetal sheet made of bimetal inside the system. Its bimetal material is composed of two indivisible metal pieces, because the thermal expansion coefficient of the two metal pieces is different and therefore in the case of temperature changes will occur in different degrees of stretching deformation. This stretching deformation is approximately proportional to temperature. One end of the sheet metal is fixed and the other end is fixed as a whole with the indicating shaft, thus driving the indicating shaft to rotate and indicating the corresponding temperature value on the dial when the sheet metal stretches and deforms.

 Bi Metal Thermometer Ranges

Bi Metal Thermometer 0 - 60 Celcius
Bi Metal Thermometer 0 - 120 Celcius
Bi Metal Thermometer 0 - 200 Celcius
Bi Metal Thermometer 0 - 300 Celcius
Bi Metal Thermometer 0 - 400 Celcius
Bi Metal Thermometer 0 - 600 Celcius

At www.pakistanpowertool.com keeping the pace of industry developments, we have an extensive range of  Bi Metal Thermometer. Here you have Bi Metal Thermometer at a reasonable price in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan, and all over Pakistan.
