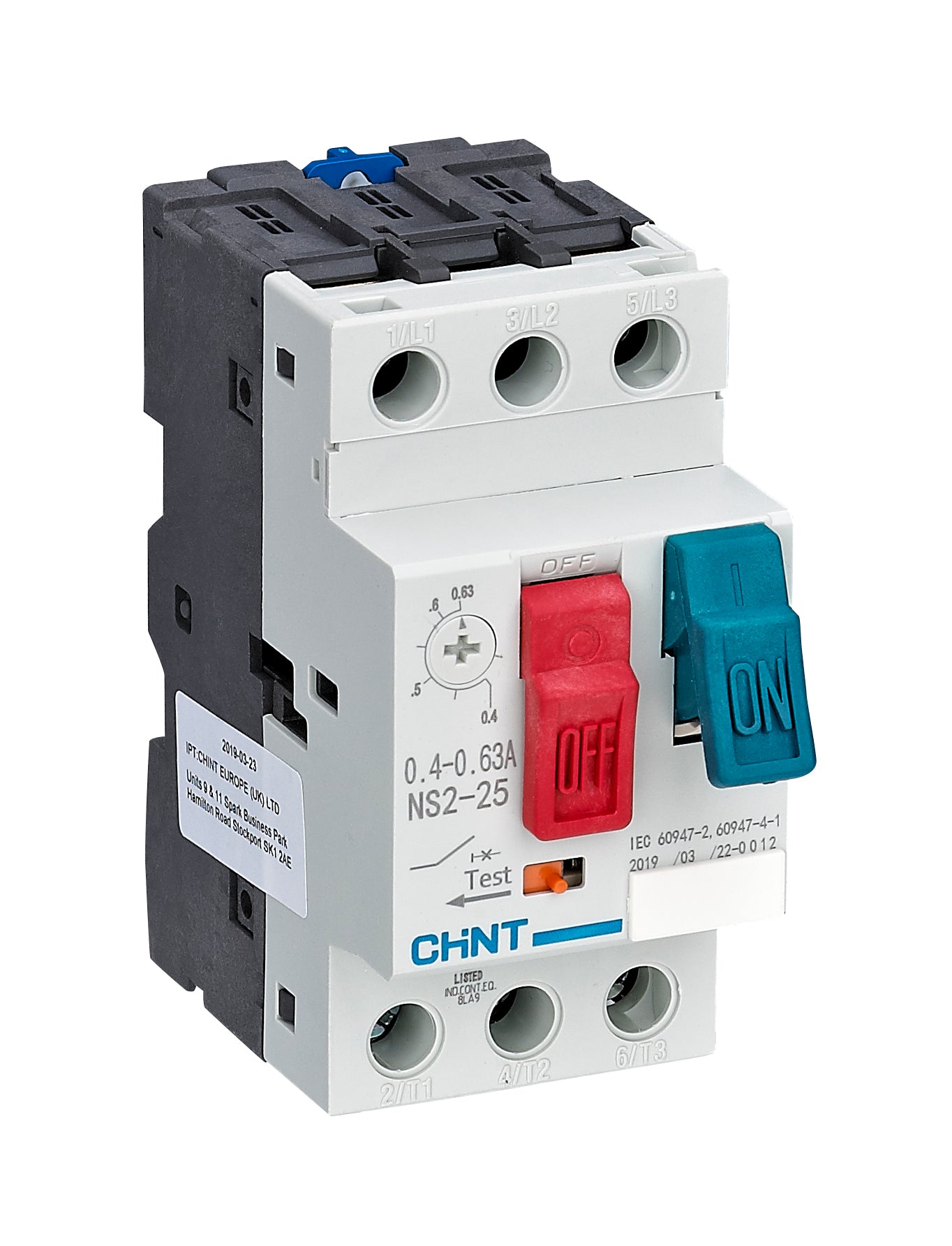

CHINT NS2 Motor Starter Motor Protection Circuit Breaker 13A 80A Heavy Duty in Pakistan

CHINT NS2 Motor Starter Motor Protection Circuit Breaker 13A 80A Heavy Duty in Pakistan

Rs.14,000.00 PKR
Rs.14,000.00 PKR
Sale Sold out
Shipping calculated at checkout.
Buying Option

CHINT NS2 Motor Starter Motor Protection Circuit Breaker 13A 80A Heavy Duty in Pakistan

NS2 manual motor starters offer reliable protection and control for AC motors up to 690V across various current ratings. Compliant with international standards and certified for global use, NS2 ensure safe and efficient motor operation.

Compliant Standards

  • IEC/EN 60947-2, IEC60947-4-1

Certificates

  • SEMKO, CE, UkrSEPRO, EAC, UL

Main Specifications

  • Rated insulation voltage Ui: 690V

  • Rated operating voltage Ue: AC230/240, AC400/415, AC440, AC500, AC690V

  • Rated frequency: 50/60 Hz

  • Frame class rating current Inm: 25A (NS2-25, 25X), 32A (NS2-32, 32X, NS2-32H), 80A (NS2-80)

  • Rated impulse voltage Uimp: 8 kV

  • Selective category: Class A, Application category AC-3

  • Insulation length: 10mm (15mm for NS2-80)

  • Conductor cross-sectional area: 1–6 mm²; 2.5–25 mm² (NS2-80)
