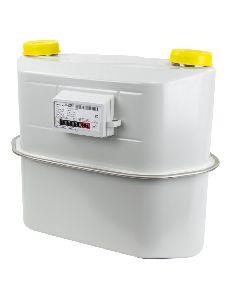

Industrial Diaphragm Gas Meter G6 Model in Pakistan

Industrial Diaphragm Gas Meter G6 Model in Pakistan

Specifications  Diaphragm Gas Meter

Nominal Flow Rate Qn (m3/h)  :  6
Maximum Flow Rate Qmax (m3/h) : 10
Operation pressure range kPa : 0.5~50 ( 7 psi )
Connection thread: 1"
Weight kg : 5.00
Outside casing: Quality steel case

A gas meter is a specialized flow meter, used to measure the volume of fuel gases such as natural gas and liquefied petroleum gas. Gas meters are used at residential, commercial, and industrial buildings that consume fuel gas supplied by a gas utility. Gases are more difficult to measure than liquids, because measured volumes are highly affected by temperature and pressure.

Gas meters measure a defined volume, regardless of the pressurized quantity or quality of the gas flowing through the meter. Temperature, pressure, and heating value compensation must be made to measure actual amount and value of gas moving through a meter.

Industrial Diaphragm Gas Meter Model G6 are gas volume measurement instrument for coal gas, natural gas, LPG and all non-corrosive gases. It is designed and developed according to world advanced technology, based on our rich experience, with the merits of small size, light in weight, accurate measurement, high sensibility, low noise.

Industrial  Diaphragm Gas Meter G6 Model

Model : G 6

Features

Compact Size, light weight

Stable accuracy and smooth operation

High metrological performance, low noise level

Low pressure loss

Functions of Diaphragm Gas Meter

Inner rotary parts of self-lubricating materials.

Case: steel, inlet & outlet connection, digital display.

Synthetic rubber for diaphragm with long service life.

Equipped with anti-theft device to prevent reverse flow of gas through the meter.

Magnetic transmission for volume indication keeps excellent air tight.

Rotary valve operation type ensures long time stable, smooth operation and minimum wear.

High quality plastic and stainless metal components, plastic coating inside and outside the cases ensure the meter’s long-life service.

Diaphragm Gas Meter Safety

Never tie (tether) pets to gas meters, or use gas meters to hang garden hoses or other tools.

Plants, shrubs, snow and debris can block the dial face or pathway to the meter. Keeping a clear path to your gas meter not only helps Peoples employees performing routine maintenance but also allows emergency responders quick access should the need arise.

These safety tips will help keep you, your family and others safe.

At www.pakistanpowertool.com keeping the pace of industry developments, we have an extensive range of Residential and Commercial Diaphragm Gas Meter. Low Pressure Diaphragm Gas Meter available at best competitive rates in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan, and all over Pakistan.
